Seamless Automation Compatibility
Precise outer dimensions (595×397×44 mm) minimize machine jamming on domestic and international automatic drum seeders, destackers, and transplanters.
Professional Propagation Systems

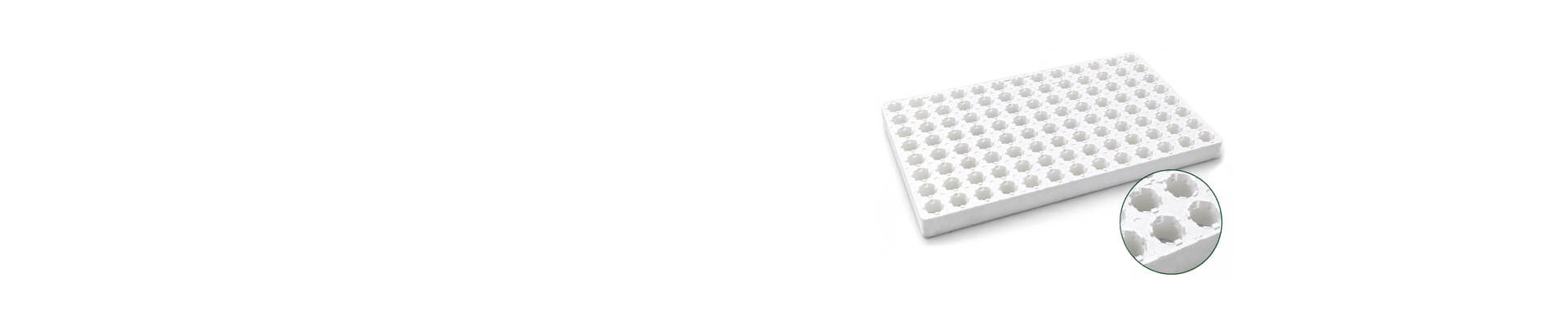

240-Cell EPS Propagation Tray
Model: PT-240EEngineered for commercial-scale nurseries, this multi-purpose EPS propagation tray works for automated production lines and float-bed systems. Made with strict dimensional consistency and tight tolerance, it runs smoothly in automated machinery, offering natural buoyancy and stable root support for large batch runs.
Key Product Benefits
Reliable Float-Bed Performance
Naturally buoyant, dense EPS structure floats level and steady on water beds without waterlogging or sinking unevenly.
Strict Dimensional Consistency
Tight molding tolerances ensure cell-to-cell uniformity, making batch moisture management and mechanical handling predictable.
Gentle Root Ejection
Tapered round cells allow rapid, clean plug extraction, reducing root tearing during fast-paced transplant cycles.
Product Specifications
- Product Name
- 240-Cell EPS Propagation Tray
- Material
- EPS
- Color
- White
- Structure
- Molded Multi-Cell Propagation Tray
- Application
- Commercial Propagation & Nursery Production
- Compatible Media
- Rock Wool Plugs / Other Compatible Propagation Media
- Packaging
- Bulk Stacked & Palletized / Shrink Bundles
All dimensions are approximate. Specifications may change without prior notice.

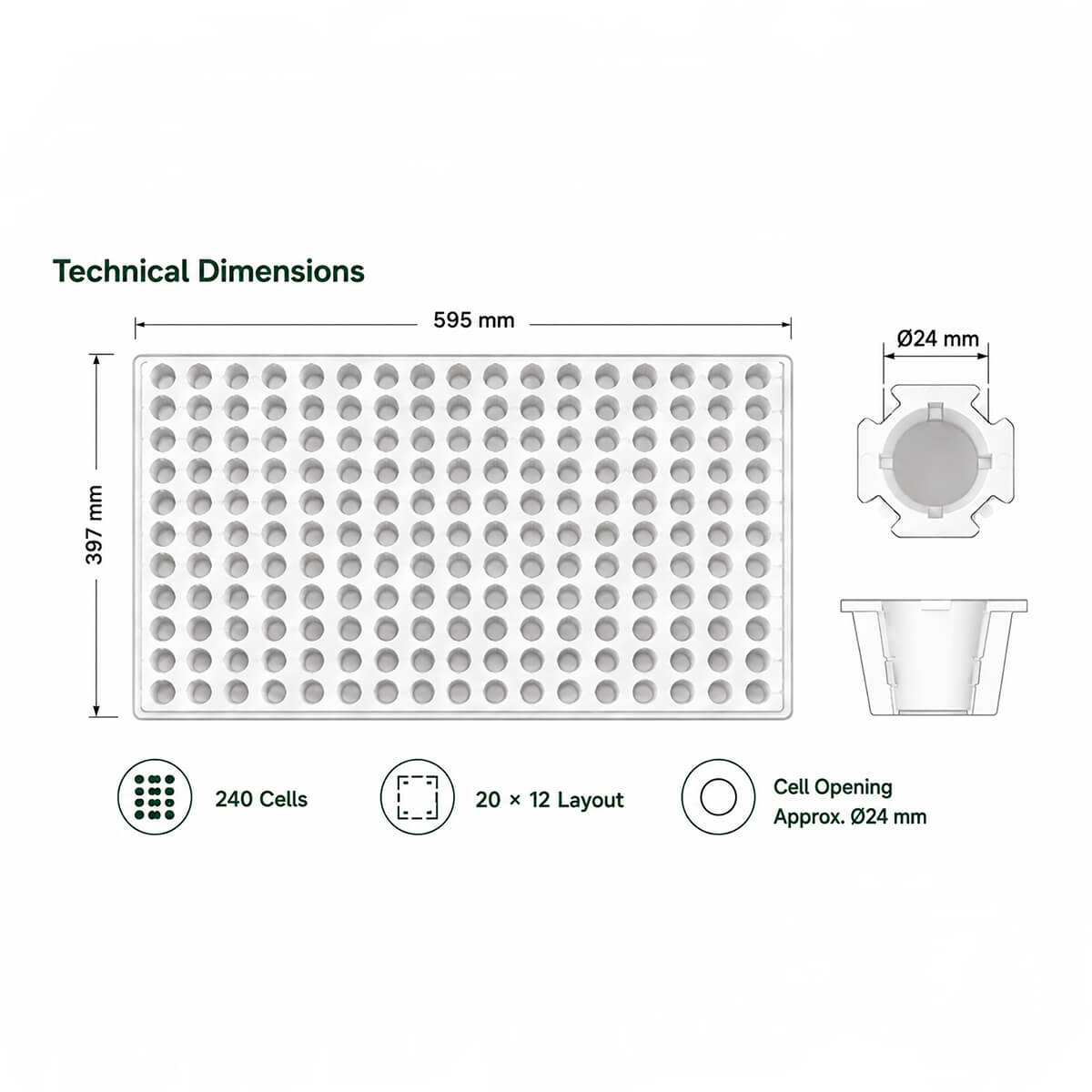

Dimensions
| Cell Count | Tray Dimensions（LxWxH） | Cell Opening | Cell Layout | Cell Pitch (Horizontal) |
|---|---|---|---|---|
| 240 Cells | 23.43 × 15.63 x1.73 in (595 × 397 x44mm) | Approx. Ø0.94 in (Ø24 mm) | 20 × 12 | Approx. 1.15 in (29.25 mm) |
Designed for Professional Propagation
1
Load Plugs
Insert suitable propagation plugs into the tray cells.
2
Propagation
Germinate and grow seedlings in a controlled environment.
3
Nursery Management
Efficient watering, nutrition and care for healthy uniform growth.
4

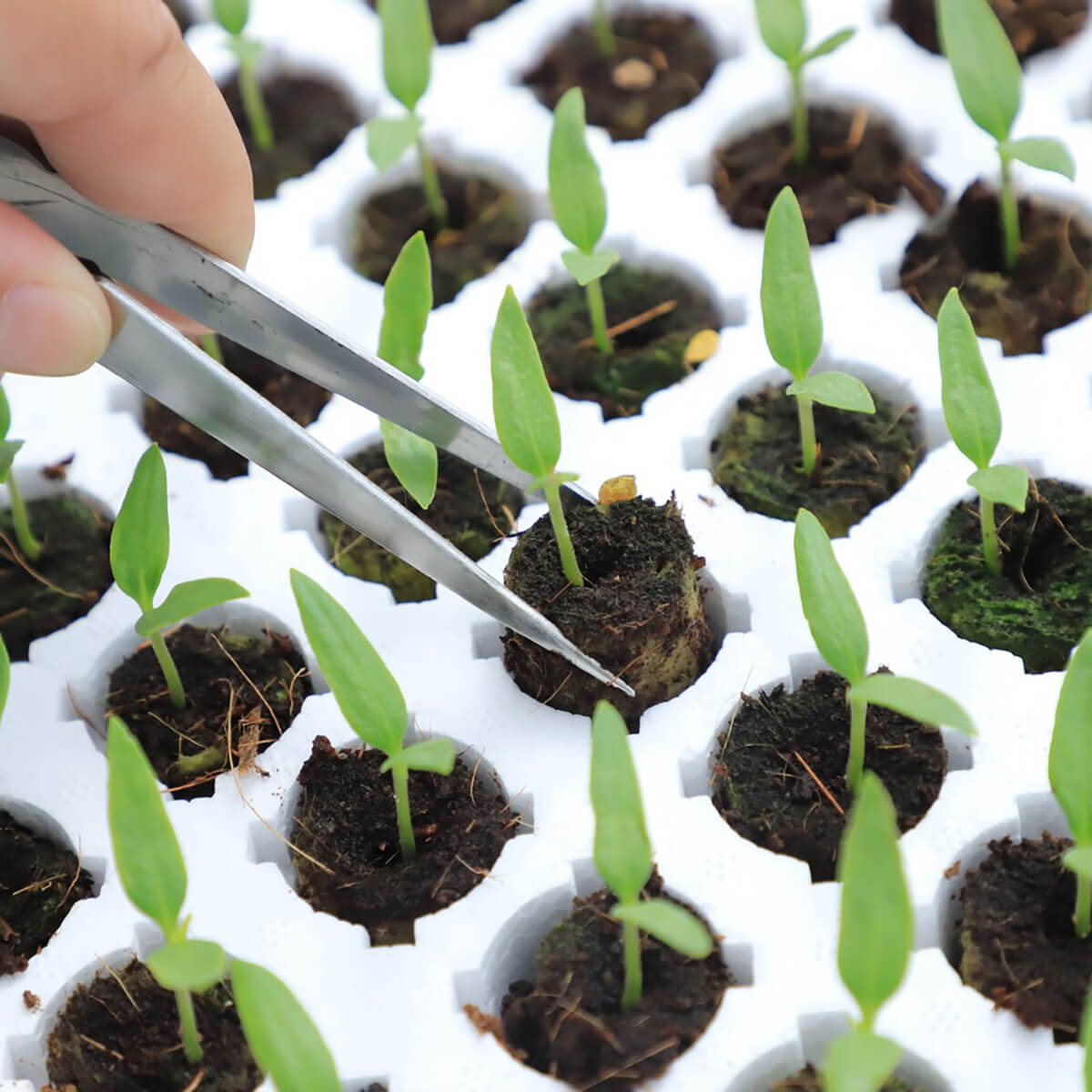

Transplanting
Ready for transplanting into growing blocks or final systems.
Applications
Automation Equipment
Smoothly integrates with mainstream mechanical drum seeders, needle seeders, and robotic transplanting lines.
Growing Methods
Versatile for both shallow-water float-bed systems (subirrigation) and standard greenhouse mobile rolling benches.
Media Matching

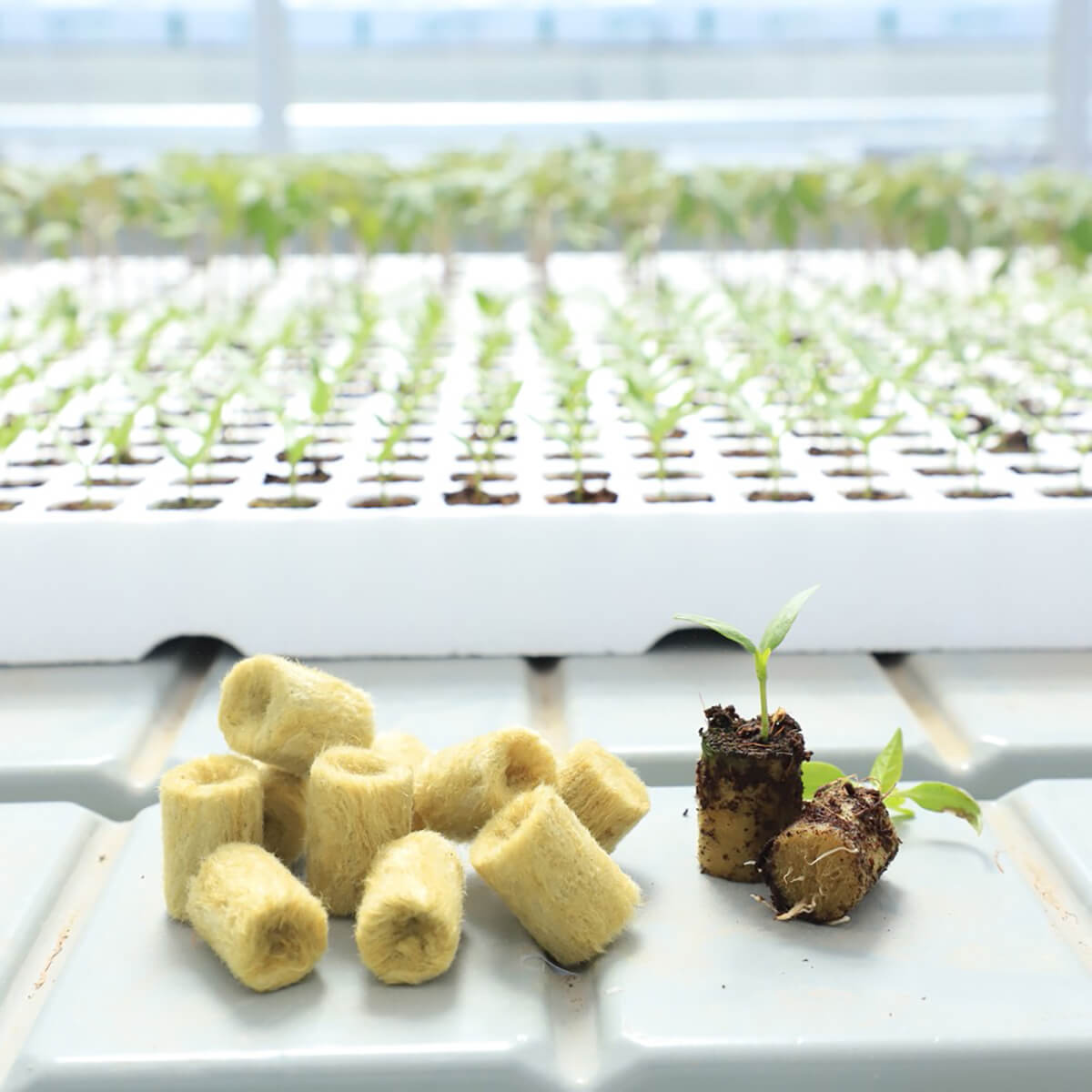

Sized to fit R20/R22 rock wool plugs, bonded foam plugs, or standard peat-based substrate fills.
